Square Hole Pneumatic Rotary Chuck Full Stroke Main Chuck Of Laser Pipe Cutter
1. Description

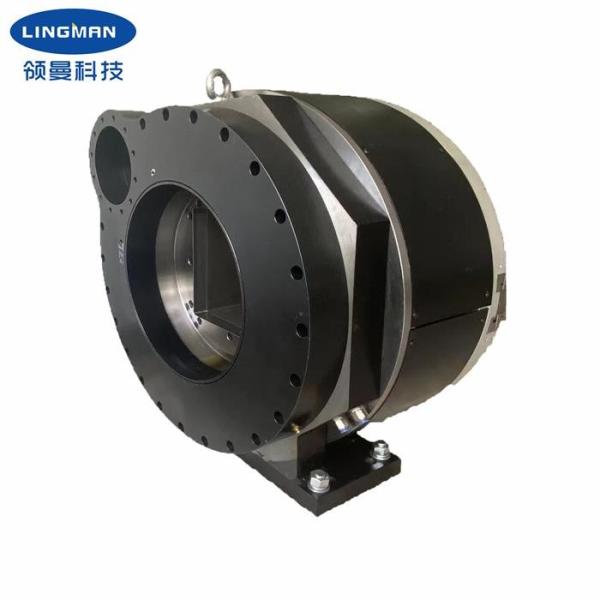

Our company has 15 years of professional experience in the production of CNC lathe and laser cutting machine chuck professional manufacturers. The pneumatic rotary chuck is the latest laser chuck designed for 2022. When laser pipe cutter is cutting and processing pipe fittings, it is necessary to clamp and fix the pipe fittings with chuck. The whole chuck general schedule for the two groups of jaw can open and close respectively, but in thin tube used for clamping or fragile fittings, its jaw trip is not easy to control, clamp can make the pipe drop, the clamping make processing pipe clamp flat or minced caused by processing pipe scrap, in order to solve this problem, on the DF series full stroke square hole chuck chuck - G620DF - 245.
The chuck itself can work as an independent rotating spindle. The new pneumatic rotary chuck has the following advantages: 1, reducer installation position can be arbitrarily adjusted; 2. The same chuck size is suitable for processing coffin size range is larger, can be effectively used to clamp thin tube or fragile tube, prevent clamping flat, through the round hole limit, clamping range is wider
The products can be widely used in special laser pipe cutting machine and other pipe processing systems.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
| Model number | G620DF-245 |
| Claw stroke | 236mm |
| Maximum clamping force | 2.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150/min |
| Clamping range | 6-242mm |
| Central height | 315mm |
| Rotational inertia | 5.2kg.㎡ |
| Rotating part weight | 120kg |
| Whole unit weight | 250kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G620DF-245 | 420 | 315 | 624 | 662 | 220 | 60 | 380 | 403.5 | 245X245 | / | 444.5 | / | / | / | 18X22 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
